PathoKey® MP UTI ID & AMR PCR Test

Real-Time PCR Detection of UTI Pathogens and AMR Genes

PURPOSE

PathoKey MP UTI ID and AMR PCR Test is intended for real-time polymerase chain reaction (PCR)-based testing, allows laboratories to detect and differentiate Urinary Tract Infections (UTI) caused by 14 pathogens and 14 antimicrobial resistance (AMR) genes encoding resistance to five antibiotics.

FEATURES AND BENEFITS

Providing Laboratory Efficiency:

  • Tests up to 40 samples, plus controls, per run
  • Turnaround time as low as 4 hours
  • Identify 28 pathogens and AMR targets in one run
  • Manual workflow also available for low throughput testing; no batching required
  • Two automation workflows available to meet dfferent laboratory throughput requirements

Compatible With Various RT-PCR Instruments:

  • Sentosa® SA201 Real-Time PCR Instrument (Sentosa SA201)
  • Applied Biosystems 7500 Fast Dx Real-Time PCR System (ABI 7500 Fast Dx)
  • Rotor-Gene Q 5/6plex Platform
  • CFX96 Real-Time PCR Detection System
  • QuantStudio 5 Real-Time PCR System

COMPREHENSIVE REPORT ANALYSIS

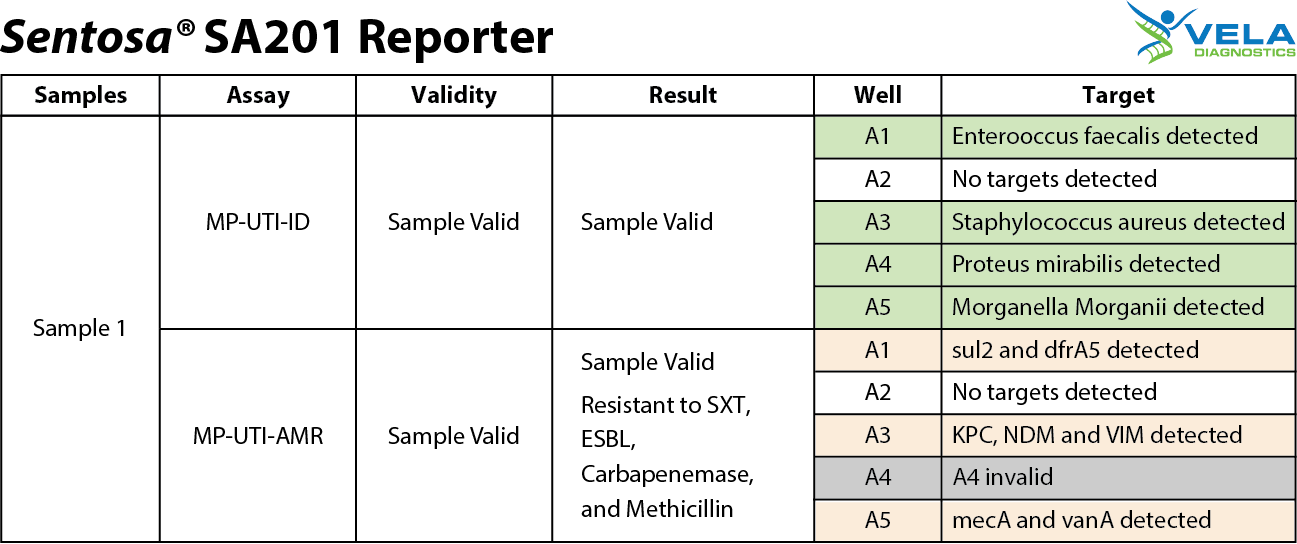

When used with the Sentosa SA201 or ABI 7500 Fast Dx, the Sentosa SA201 Reporter consolidates pathogen and AMR results for each sample for easy review by pathologists.

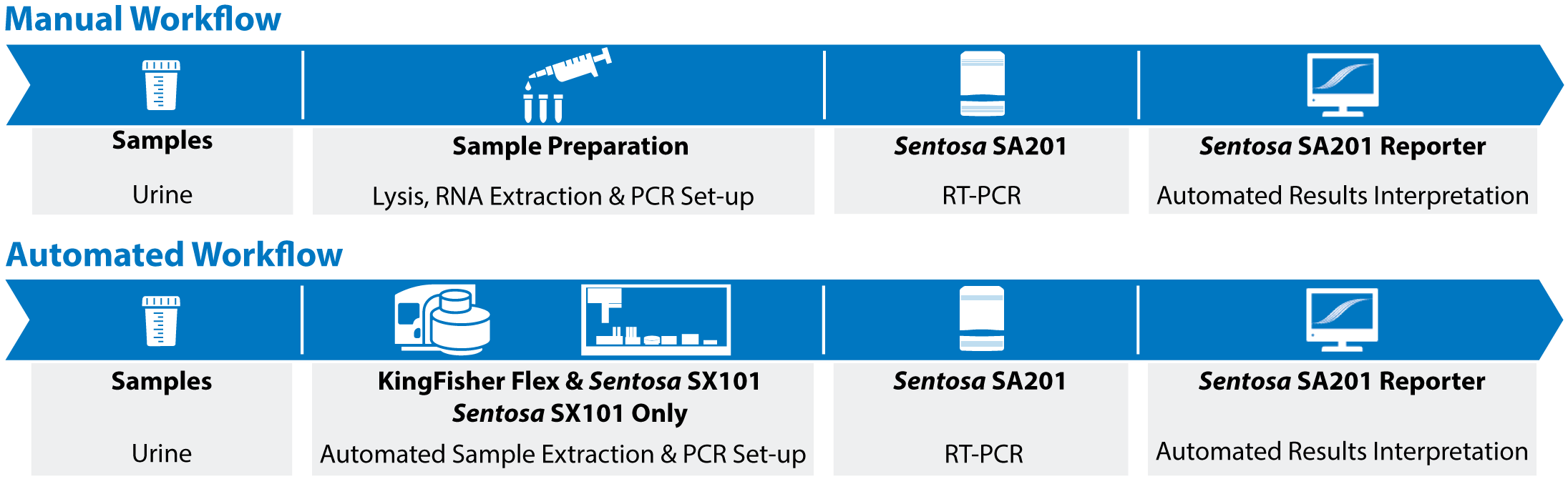

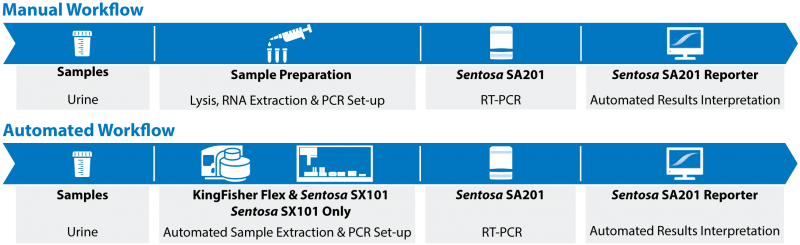

AUTOMATED WORKFLOW

SPECIFICATIONS

Attribute PathoKey MP UTI ID PCR Test PathoKey MP AMR ID PCR Test
Targets & Analytical Sensitivity Pathogens Antibiotic Genes

Acinetobacter baumannii

Candida albicans

Enterococcus faecalis

Enterococcus faecium

Escherichia coli

Klebsiella oxytoca

Klebsiella pneumoniae

Morganella morganii

Proteus mirabilis

Pseudomonas aeruginosa

Staphylococcus aureus

Staphylococcus saprophyticus

Streptococcus agalactiae

Steptococcus pneumoniae

Carbapenems

IMP

KPC

NDM

OXA-48

VIM

ESBL

CTX-M gr 1

SHV

TEM

Methicillin

mecA

SXT

dfrA1

dfrA5

sul2

Vanomycin

vanA

vanB

Limit of Detection 1000 copies/mL*
Sample Volume 750 μL with automated workflow
Turnaround Time As low as 4 hours with automated workflow
Hands-On Time As low as 30 minutes with automated workflow
Controls Positive Control (PC), Negative Control (NC) & Internal Control (IC)
Regulatory Status RUO

*Tested on manual workflow

PRODUCT FLYERS

PathoKey MP UTI ID & AMR PCR Test Flyer RUO EN

ORDERING INFORMATION

ProductPack SizeItem Number
PathoKey MP UTI AMR PCR Test RUO Up to 40 tests 301100
PathoKey MP UTI ID PCR Test RUO Up to 40 tests 301099
Sentosa SX Lysis Plate Type B (10x24) RUO 10x24 300792
Sentosa SX Lysis Plate Type B (10x48) RUO 10x48 301117
Sentosa SX U-Prep Kit (4) RUO 4 300836
VELA MP Fungal/Bacterial DNA Kit 40 301101

For availability in your country, please contact your Vela Diagnostics sales representative. Availability is subject to country's regulatory approval.

For more product related documents, please contact us
